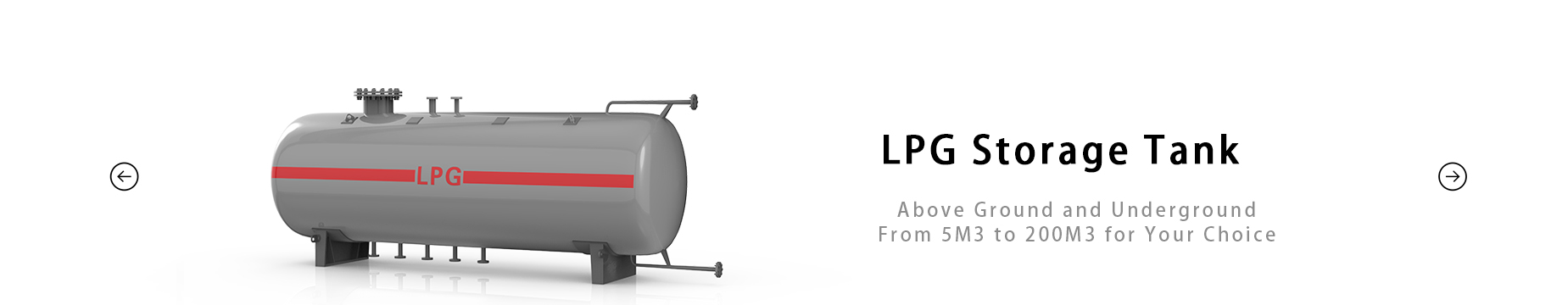

LPG storage tank is a pressure vessel used to store liquefied petroleum gas as the main component medium. The saturated vapor pressure of the storage medium is less than or equal to 1.63MPa at 50℃, and the solubility of H2S is less than 7.7mg/L.
Technical Data:
Medium | LPG (Propane) | Pressure Range | 1.63 MPa - 1.77 MPa |
Capacity | 5, 10, 15, 20, 30, 40, 50, ..., 200 CBM | Working Temperature | -19~50℃ |
Orientation | Horizontal Single Layer LPG TANK | Design Temperature | -20/54℃ |
Standard | GB150/ASME for LPG TANK | Main Material | Q345R |
LPG skid station is an integrated mobile filling station with the functions of loading, unloading, storage and control. It is mainly used for filling steel cylinders in small LPG stations at home and abroad. It has the characteristics of easy installation, complete functions and simple operation.
Technical Data:
Medium | LPG (Propane) | Pressure Range | 1.63 MPa - 1.77 MPa |
Capacity | 5, 10, 15, 20, 30, 40, 60CBM(integrated/split) | Temperature Range | -20~55℃ |
Orientation | Horizontal Single Layer LPG TANK | Rated Flow | 8-12m³/h |
Standard | GB150/ASME for LPG TANK | Main Material | Q345R |
