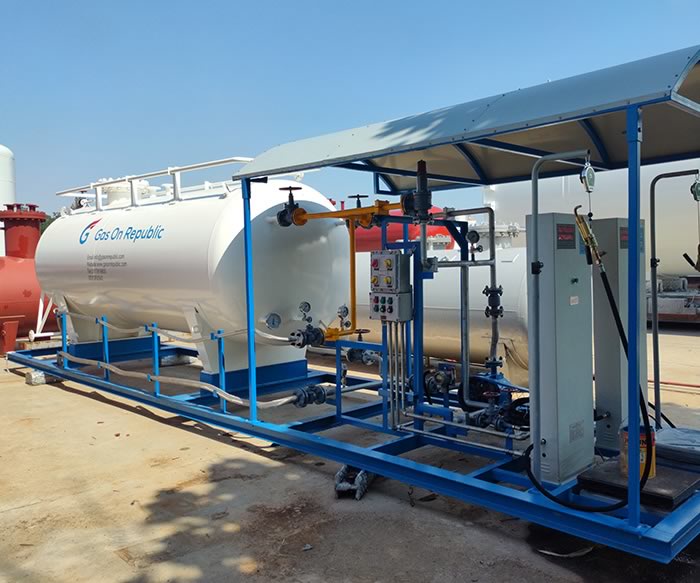

LPG skid station is an integrated mobile filling station with the functions of loading, unloading, storage and control. It is mainly used for filling steel cylinders in small LPG stations at home and abroad. It has the characteristics of easy installation, complete functions and simple operation.
Technical Data:
Medium | LPG (Propane) | Pressure Range | 1.63 MPa - 1.77 MPa |
Capacity | 5, 10, 15, 20, 30, 40, 60CBM(integrated/split) | Temperature Range | -20~55℃ |
Orientation | Horizontal Single Layer LPG TANK | Rated Flow | 8-12m³/h |
Standard | GB150/ASME for LPG TANK | Main Material | Q345R |
The LPG skid mounted filling station is an integrated equipment that integrates LPG storage tanks, pumps, motors, pipelines, valves and filling machine. Skid station can fill cylinders with LPG like large LPG stations, and it can also fill vehicles with LPG.
If you are an individual or your company is just starting. the fund is insufficient, but you are very optimistic about LPG industry. LPG skid station is your best choice. It needs at least USD 7,000,000 to invest a LPG station. While a LPG skid station costs only USD15,000.
It is very flexible in use, integrally skid-mounted, has all the basic filling functions and safety devices.
It has little on-site installation work, and is not challenged by traditional on-site construction conditions (such as material delays, adverse weather, and other project slow-downs), resulting in Reduce investment costs by up to 75% or more.
A 5m3 skid station covers an area of only 12 square meters. Suitable for complex terrain.
It has little on-site installation work, and is not challenged by traditional on-site construction conditions (such as material delays, adverse weather, and other project slow-downs), resulting in Reduce investment costs by up to 75% or more.
Our self-developed skid-mounted station, in addition to the basic functions of unloading and vehicles & cylinders filling, also adds advanced functions such as discharging residue, transferring the liquid into another tank, filling tanker, safety relief, leakage alarm, and electric control operation.
| Medium | LPG | ||||
| LPG Storage Tank | Capacity | 2.5 ton to 30 ton | |||
| Design pressure | 1.77MPa | ||||
| Design temperature | -20℃/50℃a | ||||
| Material | Q345R | ||||
| Filling ratio | 0.9 | ||||
| Electronic filling scale | Filling range | 2-120KG | |||
| Working power | 220V,50HZ | ||||
| Power | 30W | ||||
| Max. Filling weight | 150KG | ||||
| Min. Filling weight | 1GK | ||||
| Scale | 50G | ||||
| Precision grade | Ⅲ | ||||
| Working temperature | 40℃〜50℃ | ||||
| Working hunidity | Relative humidity≤90% | ||||
| Working pressure | 1.6MPa | ||||
| Scale size | 535×425MM | ||||
| Explosion proof indication | Exdeib ⅡBT4GB | ||||
| Filling range | 2-120KG | Pump | Flow | 8-12M³/H | |
| Maximum lift | 150M | ||||
| Working power supply | AC380V,50HZ | ||||
| Design pressure of process pipeline | 2.5MPa | ||||
| Opening pressure of safety valve in process pipeline | 1.70MPa | ||||
| Applicable range of temperature | -20℃〜50℃ | ||||
| APPlicable range of humidity | 10〜95% | ||||
| Skid size(L)× wide × high | It depends on the user | ||||
| Total weight | It depends on the user | ||||
* The above product data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, all data interpretation rights involved in this website belong to CJSE.
We offer a diverse range of transportation options, including bulk cargo shipping and container shipping. For bulk cargo shipping, we use tarpaulins and cargo nets to package the tanks, ensuring moisture and corrosion resistance, providing worry-free safety. You can choose from ocean shipping, land transportation, or railway transportation based on your needs.
We have over 600 advanced production machines, providing a solid foundation for product manufacturing. The manufacturing process involves more than ten steps, including cutting, head pressing, rolling, longitudinal and circumferential seam welding, assembly welding, machining, heat treatment, hydrostatic testing, sandblasting, painting, and more. Each step is staffed with skilled professionals, and further subdivided to enhance efficiency and product quality.
As the national standard drafting unit, our company stands out in Shandong's manufacturing scene, winning the title of Provincial Manufacturing Single Champion Enterprise. Not only are we recognized as a nationally accredited "Little Giant" enterprise specializing in innovation, but our products and services have also obtained international authoritative certifications such as ASME, CE, ISO, and EAC, showcasing our competitiveness and commitment to quality in the global market. To ensure top-notch quality, we willingly undergo evaluations by trusted third-party agencies like BV, SGS, TUV, and more. This guarantees our customers get the safest, most reliable products and services.
Our personnel have participated in exhibitions in more than 20 countries, and our customers are spread across over 60 countries and regions.
30+ Global Top 500 enterprises cooperation experience such as Air Liquide, Coca Cola, Sinopec and so on.
