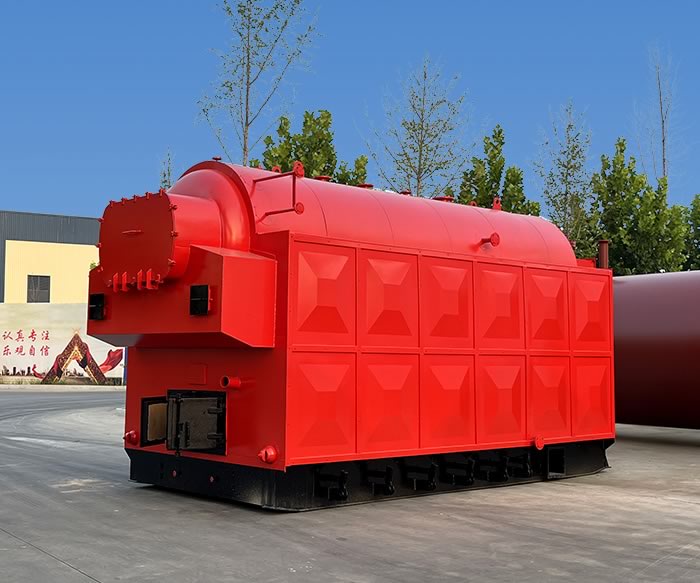

Fuel: biomass briquettes, chips, corncobs, sawdust
Application industries: heating, chemical industry, food, tobacco, textile, printing and dyeing, feed, medicine, building materials, wine making, rubber, hospital.
| Combustion Equipment | Hand-fired Movable Grate |
Steam Boiler | 1~4T/h |
Rated Working Pressure | 0.7/1.0/1.25Mpa |
Rated steam Temperature | 171/184/193℃ |
Hot Water Boiler | 0.7~2.8MW |
Supply Water Temperature | 85℃ |
Design Thermal Efficiency | ≥84% |
Applicable Fuel | Wood, Coal, Biomass fuels |

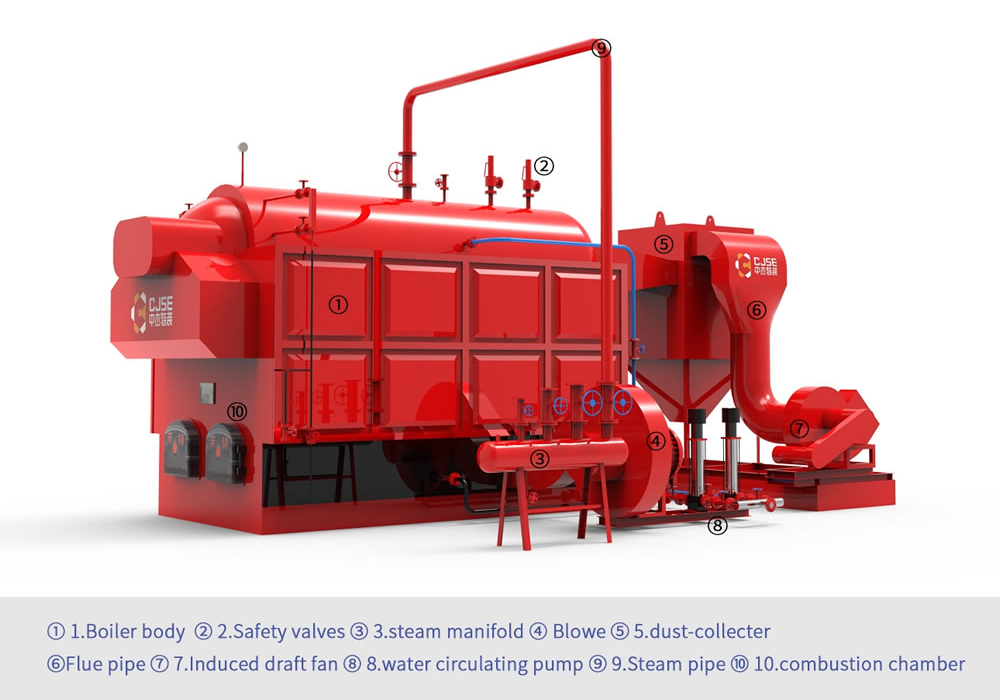

1.The large furnace is easy for the full combustion of biomass fuel. According to the combustion characteristics of biomass fuel, the furnace arch is designed reasonably to improve the burn out degree of fuel and eliminate black smoke.
2.The use of high-strength large grate pieces is suitable for the transportation and combustion of biomass fuel. The installation of roller device for large grate can improve the safety of grate and facilitate combustion adjustment.
3.The unique feeding device has strong fuel adaptability to prevent front combustion and upper combustion of furnace fire.
4.The unique secondary air supply device blows the flame back to prevent the flame from channeling into the hopper,strengthens the flue gas disturbance, promotes combustion and prevents the generation of black smoke.5.The heating surface and combustion device are arranged reasonably, and the thermal efficiency of the boiler is increased by2%-5%.
6.Reasonable smoke speed design, no ash accumulation and wear on the heating surface, so as to ensure the long-term efficient and stable operation of the boiler.
7.The inertia separation design of smoke and dust at the furnace outlet can effectively reduce the dust concentration in smoke exhaust and reduce the wear of rear heating surface.
8.Large water volume is conducive to power failure protection and strong adaptability to load change.
9.Compact structure, small installation dimension, shorten installation period and reduce the cost of boiler room.
10.Hot water boiler: independent circuit design and reasonable injection cycle are adopted to ensure reliable operation.
| Technical Parameters | DZH1-0.7-SCI | DZH1-1.25-SCI | DZH2-1.0-SCI | DZH2-1.25-SCI | DZH4-1.0-SCI | DZH4-1.25-SCI |
| Boiler Model/Item | 1 | 1 | 2 | 2 | 4 | 4 |
| Rated evaporation capacity | 0.7 | 1.25 | 1 | 1.25 | 1 | 1.25 |
| Rated steam pressure | 20 | 20 | 20 | 20 | 20 | 20 |
| Rated steam temperature | 171 | 193 | 184 | 193 | 184 | 193 |
| Rated feed water temperature | 25.7 | 25.7 | 51 | 51 | 78.8 | 78.8 |
| Calculation of heat exchange area | 26.16 | 26.16 | 26.16 | 26.16 | 78.48 | 78.48 |
| Design thermal efficiency（oil/gas） | sCI | sCI | sCI | sCI | sCI | sCI |
| Maximum transport weight | 83.27 | 81.54 | 84.59 | 84.38 | 82.82 | 80.83 |
| Water capacity of boiler | 132.9 | 148.2 | 139.7 | 144.5 | 139.4 | 149.8 |
| Combustion mode | 4.1×2,2×3.0 | 5.1×2.25×3.05 | 5.05×2.5×3.2 | 5.05×2.5×3.2 | 5.5×2.75×3.355 | 5.5×2.8×3.4 |
| Combustion regulation mode | 9 | 9.61 | 12.5 | 13 | 14.3 | 14.8 |
* The above product data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, all data interpretation rights involved in this website belong to CJSE.
We offer a diverse range of transportation options, including bulk cargo shipping and container shipping. For bulk cargo shipping, we use tarpaulins and cargo nets to package the tanks, ensuring moisture and corrosion resistance, providing worry-free safety. You can choose from ocean shipping, land transportation, or railway transportation based on your needs.

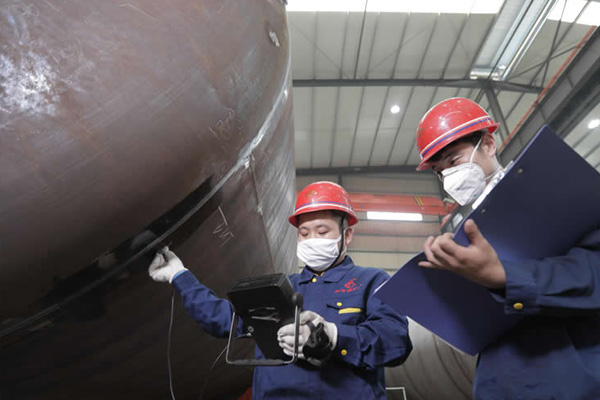

We have over 600 advanced production machines, providing a solid foundation for product manufacturing. The manufacturing process involves more than ten steps, including cutting, head pressing, rolling, longitudinal and circumferential seam welding, assembly welding, machining, heat treatment, hydrostatic testing, sandblasting, painting, and more. Each step is staffed with skilled professionals, and further subdivided to enhance efficiency and product quality.
