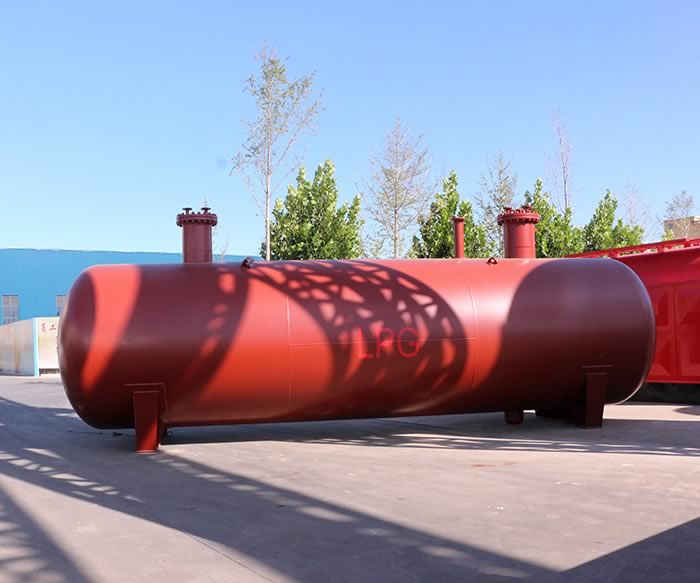

Liquefied Petroleum Storage Tank
360 ° XR display
Liquefied Petroleum Storage Tank

Liquefied Petroleum Storage Tank

Installation type: Underground

Max. Allowance working pressure:1.82MPa

Capacity:5m3 ~ 200m3


Customer case

Product Introduction


LPG storage tank is a pressure vessel used to store liquefied petroleum gas (propane) as the main component medium. The saturated vapor pressure of the storage medium is less than or equal to 1.63MPa at 50, and the solubility of H2S is less than 7.7mg/L. There are two types, above-ground storage tank and underground storage tank.



Technical Advantage


1, Advantages of raw material supply


The company has established a strategic cooperative relationship with large steel groups such as Shandong Iron&Steel Group Co.Ltd, Ansteel, Hansteel, HBIS Wusteel and so on, the purchase cost is relatively reduced, more than 80% of the steel plates are fixed rolling steel plate, and ensure that each steel plate  grade ultrasonic test qualified, to ensure the stability of the quality of the steel plates. The head is an integral head with no stitching weld, which improves the safety of the product.


2, Advantages of manufacturing resources


LPG storage tanks adopt the mode of mass production and assembly line production, and improve the production efficiency and quality of products through the equipment and process tooling with a higher degree of mechanization and automation. The company has added CNC blanking, CNC machining center, CNC coil forming equipment, submerged arc automatic welding machine and other equipment. The longitudinal and girth welds all adopt automatic welding technology, which realizes the precision manufacturing of products and the high level of quality control.


3, Advantages of process control


The company has established a stable process control system according to the current national laws, regulations and standards. Through the continuous transformation and upgrading of new technologies and new process methods, the existing manufacturing process level has reached the higher level of the industry.



No.

Model

Inner/outer   tank   size(mm)

Material

N.W.(kg)

Total length(mm)

Foundation boltspecifications(mm)

Center distance of liquid   level   gauge(mm)



1

    WG   1.77-1200-5

DN1200×3980×8/8(6.8)

Q345R

1595

4663

4×M20/3200/720

1400



2

    WG 1.77-1400-5

DN1400×2740 ×10/10(8.7)

Q345R

1780

3535

4×M20/1950/840

1600



3

    WG   1.77-1400-10

DN1400×5980×10/10(8.7)

Q345R

2925

6775

4×M20/5180/840

1600



4

    WG   1.77-1600-10

DN1600×4400×10/10(8.8)

Q345R

 2760

5295

4×M24/3400/960

1800



5

    WG   1.77-1800-15

DN1800×5250×12/12(10.7)

Q345R

4230

6247

4×M24/4300/1120

2000



6

    WG   1.77-2000-20

DN2000×5650×12/12(10.7)

Q345R

5025

6747

4×M24/4730/1260

2200



7

WG 1.77-2000-25

DN2000×7250×12/12(10.7)

Q345R

5980

8347

4×M24/6330/1260

2200



8

    WG1.77-2200-25

DN2200×5770×12/14(12.7)

Q345R

5910

6999

4×M30/4600/1380

2400



9

    WG   1.77-2000-30

DN2000×8840×12/12(10.7)

Q345R

6935

9937

4×M24/7900/1260

2200



10

    WG1.77-2200-30

DN2200×7080×12/14(12N47)

Q345R

6760

8314

4×M30/5900/1380

2400




As a state-level high-tech enterprise, Shandong Zhongjie Pressure Equipment attaches great importance to scientific and technological research and innovation, extensively carries out industry-university-research cooperation, and has a number of technical patents
