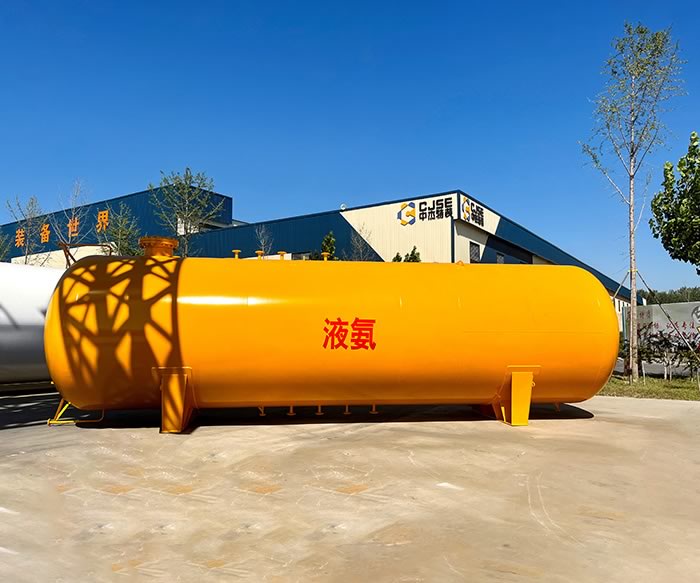

Liquid ammonia tank

Liquid ammonia storage tank is a special pressure vessel for liquid ammonia medium. The saturated vapor pressure of the storage medium at 50℃ is less than or equal to 2.03MPa, and the design pressure is generally 2.16MPa.

Customer case

Product Introduction


      Liquid ammonia storage tank is a special pressure vessel for liquid ammonia medium. The saturated vapor pressure of the storage medium at 50 is less than or equal to 2.03MPa, and the design pressure is generally 2.16MPa.


Technical Advantage


        Liquid ammonia tank steel, forgings, pipe materials are used in large enterprise groups products, from materials admission, blanking, cutting, shell molding, compound docking, parts assembly, nondestructive testing, heat treatment control, pressure test, antisepsis coating process stages are formed mature manufacturing and test detection means, make product manufacturing efficiency and quality can maintain in the industry leading level.

       Our company adopts automatic shot blasting treatment technology, completely remove rust, oil, oxide skin;The primer adopts two epoxide anti-rust primers, the surface of the storage tank is pure color and lustre, corrosion and anti-rust, strong weather resistance, and the paint can be kept for more than 5 years.



No.ModelDesign pressure/temperaturevolume
    (m3)
Specification(mm)MaterialN.W.(Kg)Total length(mm)
1 DN1400 V=5m32.16/-20/545DN1400×2750×12/12Q345R22053547
2DN1600 V=10m32.16/-20/5410DN1600×4400×12/14Q345R34855299
3DN1800 V=15m32.16/-20/5415DN1800×5250×14/14Q345R49156249
4 DN2000 V=20m32.16/-20/5420DN2000×5650×16/16Q345R64256751
5 DN2200 V=25m32.16/-20/5425DN2200×5770×16/16(15)Q345R73957006
6 DN2000 V=20m32.16/-20/5420DN2200×7080×16/16(15)Q345R85358316
7 DN2400 V=30m32.16/-20/5430DN2400×5760×18/18(16.5)Q345R91257098
8 DN2400 V=40m32.16/-20/5440DN2400×7970×18/18(16.5)Q345R114659308
9 DN2800 V=40m32.16/-20/5440DN2800×5490×20/22(20)Q345R113407042
10 DN2400 V=50m32.16/-20/5450DN2400×10180×18/18(16.5)Q345R1420011518



As a state-level high-tech enterprise, Shandong Zhongjie Pressure Equipment attaches great importance to scientific and technological research and innovation, extensively carries out industry-university-research cooperation, and has a number of technical patents
