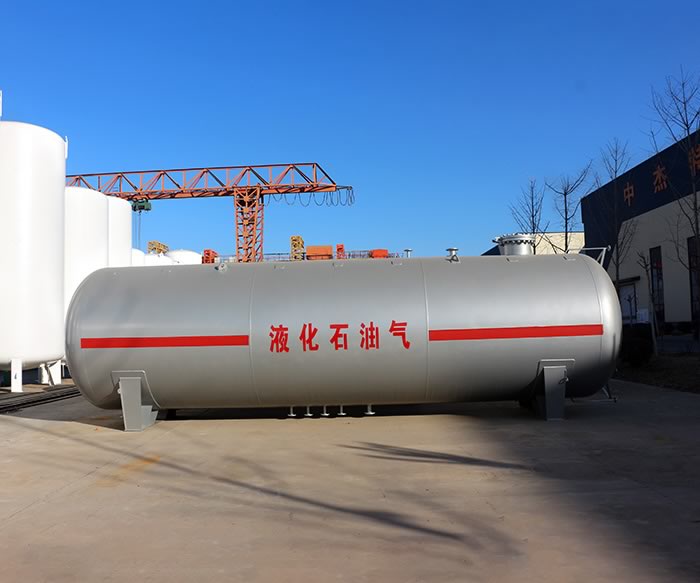

LPG storage tank is a pressure vessel used to store liquefied petroleum gas (propane) as the main component medium. The saturated vapor pressure of the storage medium is less than or equal to 1.63MPa at 50℃, and the solubility of H2S is less than 7.7mg/L. There are two types, above-ground storage tank and underground storage tank.
Technical Data:
Medium | LPG (Propane) | Pressure Range | 1.63 MPa - 1.77 MPa |
Capacity | 5, 10, 15, 20, 30, 40, 50, ..., 200 CBM | Working Temperature | -19~50℃ |
Orientation | Horizontal Single Layer LPG TANK | Design Temperature | -20/54℃ |
Standard | GB150/ASME for LPG TANK | Main Material | Q345R |
| No. | Model | Inner/outer tank size(mm) | Material | N.W.(kg) | Total length(mm) | Foundation bolt specifications(mm) | Center distance of liquid level gauge(m m) |
| 1 | WG 1.77-1200-5 | DN1200×3980 ×8/8(6.8) | Q345R | 1595 | 4663 | 4×M20/3200/720 | 1400 |
| 2 | WG 1.77-1400-5 | DN1400×2740 ×10/10(8.7) | Q345R | 1780 | 3535 | 4×M20/1950/840 | 1600 |
| 3 | WG 1.77-1400-10 | DN1400×5980 ×10/10(8.7) | Q345R | 2925 | 6775 | 4×M20/5180/840 | 1600 |
| 4 | WG 1.77-1600-10 | DN1600×4400 ×10/10(8.8) | Q345R | 2760 | 5295 | 4×M24/3400/960 | 1800 |
| 5 | WG 1.77-1800-15 | DN1800×5250 ×12/12(10.7) | Q345R | 4230 | 6247 | 4×M24/4300/1120 | 2000 |
| 6 | WG 1.77-2000-20 | DN2000×5650 ×12/12(10.7) | Q345R | 5025 | 6747 | 4×M24/4730/1260 | 2200 |
| 7 | WG 1.77-2000-25 | DN2000×7250 ×12/12(10.7) | Q345R | 5980 | 8347 | 4×M24/6330/1260 | 2200 |
| 8 | WG1.77-2200-25 | DN2200×5770 ×12/14(12.7) | Q345R | 5910 | 6999 | 4×M30/4600/1380 | 2400 |
| 9 | WG 1.77-2000-30 | DN2000×8840 ×12/12(10.7) | Q345R | 6935 | 9937 | 4×M24/7900/1260 | 2200 |
| 10 | WG1.77-2200-30 | DN2200×7080 ×12/14(12N47) | Q345R | 6760 | 8314 | 4×M30/5900/1380 | 2400 |
