Product Details

Product troinduction

SZS series boiler is a fully automatic horizontal double drum water tube boiler,and its performance characteristics are as follows:

1.D-type layout, longitudinal double drum water pipe structure, compact structure;

2.Full membrane water wall structure, small smoke exhaust heat loss and high boiler thermal efficiency;

3.It is equipped with complete automatic control device and safety protection device to realize the functions of automatic water level control, dangerous low water level alarm, boiler shutdown, automatic pressure control and over pressure alarm, boiler automatic ignition, automatic fire regulation and flame out protection, so as to ensure the safe and stable operation of the boiler;

4.Equipped with a new two-stage spiral economizer made of high-strength sulfuric acid resistant ND steel to improve the thermal efficiency of the boiler;

5.Steam boiler: natural circulation and large section ratio are adopted;

6.Hot water boiler: forced circulation is adopted, and the water circulation is safe and reliable;

7.SZS low nitrogen condensing gas fired boiler aims at the key technical factors such as the relationship between steam condensation rate and exhaust gas temperature, the relationship between condensation rate and thermal efficiency, and the corrosion rate of condensate water to different steel grades,Through the reasonable design of heating surface and the low and high water to reduce the exhaust temperature, the condensation rate of water vapor in the flue gas can meet the design requirements, and the thermal efficiency of the boiler can be greatly improved.

8.Due to the large-scale furnace structure and flue gas recirculation return technology, for gas-fired boilers, ultra-low nitrogen emissions can be achieved, and NOX emissions ≤30mg/Nm3.

Get quote

Learn more

Internal structure diagram

Get quote

Learn more

Internal structure photo

★★★ Product parameters ★★★

Boiler Model /Item			SZS10	SZS15	SZS20	SZS25	SZS30	SZS35	SZS40	SZS50	SZS65
Rated evaporation		t/h	10	15	20	25	30	35	40	50	65
Rated steam pressure		MPa	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6
Rated steam temperature		℃	194/204	194/204	194/204	194/204	194/204	194/204	194/204	194/204	194/204
Rated feed water temperature		℃	20(104)	20(104)	104	104	104	104	104	104	104
Calculation of heat exchange area		m2	357.7	524	702.5	805.2	905.2	1052	1208	1512	1998
Design thermal efficiency (oil / gas)		％	98.48/99.35	98.4/99.3	98.34/99.15	98.1/99.48	98.2/99.2	98.6/99.4	98.64/99.5	98.6/99.4	98.4/99.5
Maximum transport weight of boiler		t	30	40	46.3	52	55.7	68	76	Spare parts14	Spare parts14
Boiler water capacity		t	10.1	14.7	16.9	18.9	21.6	23.8	27.7	/	/
Combustion mode		Chamber combustion
Combustion regulation mode		Full automatic proportional adjustment
Applicable fuel		Natural gas, light diesel, coke oven gas
Fuel consumption	Natural gas	Nm3/h	805	1195	1600.7	1972	2190	3060	3060	3825	4893
Fuel consumption	Light diesel	Kg/h	663	986	1319.1	1598	1860	2540	2540	3175	4128
Power supply		380V/50Hz
Total power of equipment	Diesel fuel	KW	42.5	48.5	70.5	119	137	170.5	170.5	203	265
Total power of equipment	Gas	KW	38.5	46.5	66.5	108	130	159.5	159.5	188	250
Feed water pump	Electric power	KW	15	15	18.5	30	37	45	45	45	75
Water circulating pump	Electric power	KW	1.5	1.5	3	3	3	4.5	4.5	11	15
Fan	Electric power	KW	22	30	45	75	90	110	110	132	160
Maximum transport size		mm	7490×2790 ×3516	9120×3375 ×3566	10050×3330 ×4066	10200×3800 ×4150	10000×4030 ×4230	11000×4300 ×4230	12000×4300 ×4530	15500×4400 ×4530	11500×1500 ×1800
External interface	Water intake	PN MPa	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)
	Water intake	DN mm	50	50	65	65	80	80	80	100	100
	Main steam outlet	PN MPa	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)
	Main steam outlet	DN mm	150	200	200	200	200	250	250	300	300
	Second steam outlet	PN MPa	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)
	Second steam outlet	DN mm	40	40	50	50	50	50	50	50	50
	Regular drain outlet	PN MPa	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)
	Regular drain outlet	DN mm	40/50	40/50	40/50	40/50	50	50	50	50	50
	Continuous drain outlet	PN MPa	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)
	Continuous drain outlet	DN mm	40	40	40	40	40	40	40	40	40
	Safety valve interface	PN MPa	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)	1.6(2.5)
	Safety valve interface	DN mm	2×80	2×100	2×100	2×125	2×125	2×150	2×150	2×150	2×150
	Chimney size	(mm×m)	φ600×10	φ800×10	φ800×10	φ1000×10	φ1000×10	φ1200×10	φ1200×10	φ1300×15	φ1400×15

* The above product data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, all data interpretation rights involved in this website belong to CJSE.

System Diagram

Quality Control

Non-destructive testing

Chemical laboratory

Mechanical performance laboratory

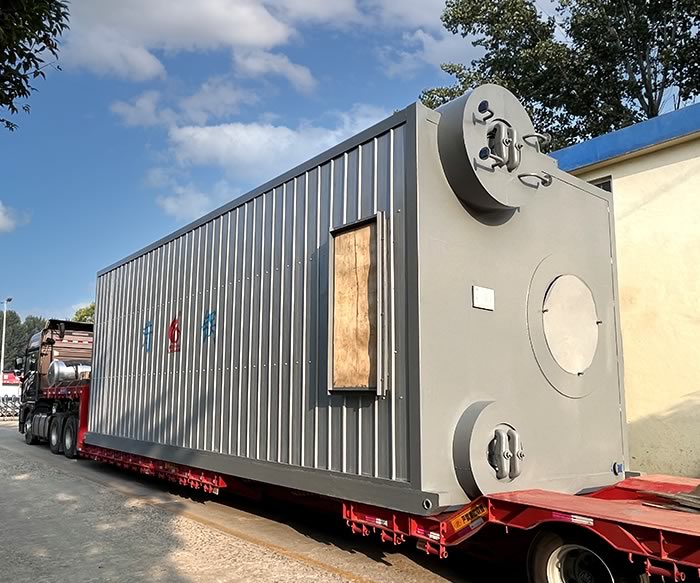

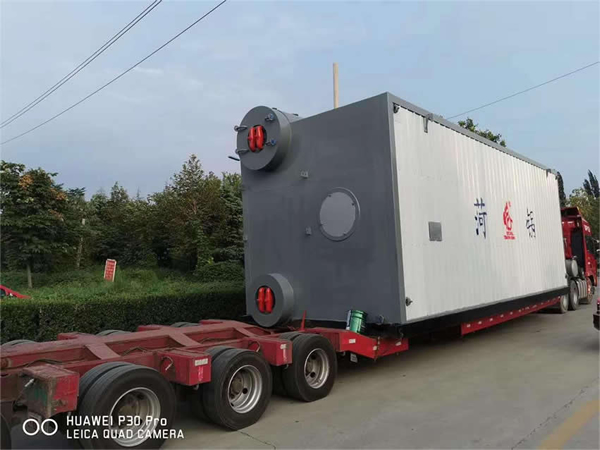

Shipment Photos
